| LIGHT BAR >> LIGHT BAR >> LED light bar(rectangular ,1 bar,14.0*7.5mm)
Specification

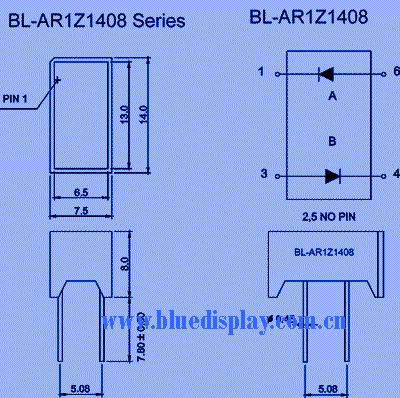

| Title: | LED light bar(rectangular ,1 bar,14.0*7.5mm) | |
| P/N: | BL-AR1Z1408 | |
| Size: | Reflector length: 14 Reflector width: 8 | |
| kind | LIGHT BAR -> LIGHT BAR | |
LED light bar(rectangular ,14.0*7.5mm) Lightbar LED Features: Display area shape: rectangular Display area number: 1 Reflector length: 14.0mm Reflector width: 7.5mm Uniform Light Emitting Area Low Current Operation Easily Mounted on PC. Boards
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-AR1Z1408UB | ultra Blue | 470 | 3.8 | 4.5 | 20 | | |
| BL-AR1Z1408B | ultra Blue | 470 | 3.8 | 4.5 | 10 | |
