Product
LED selection Guide
| LIGHT BAR >> LIGHT BAR >> LED light bar(square ,1 bar,10.00*10.00mm)
Specification

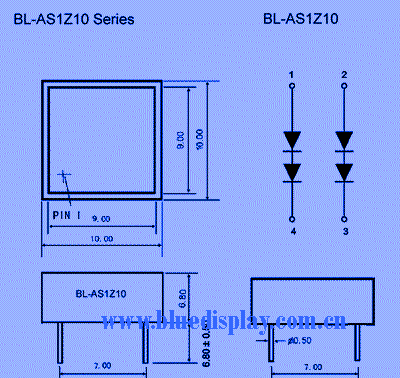

| Title: | LED light bar(square ,1 bar,10.00*10.00mm) | |
| P/N: | BL-AS1Z10 | |
| Size: | 10mm square | |
| kind | LIGHT BAR -> LIGHT BAR | |
LED light bar(square ,10.00*10.00mm) Lightbar LED Features: Display area shape: square Display area number: 1 Reflector length: 10.00mm Reflector width: 10.00mm Uniform Light Emitting Area Low Current Operation Easily Mounted on PC. Boards
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-AS1Z10UB | ultra Blue | 470 | 3.8 | 4.5 | 22 | | |
| BL-AS1Z10B | ultra Blue | 470 | 3.8 | 4.5 | 12 | |
