| LIGHT BAR >> LED ARROW DISPLAY >> Arrow display 30*56mm

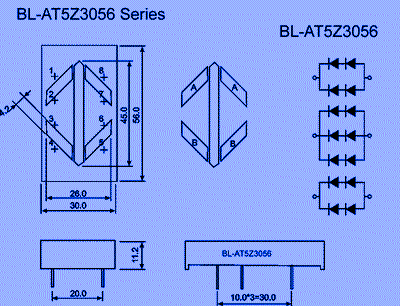

Specification
| Title: | Arrow display 30*56mm | |
| P/N: | BL-AT5Z3056 | |
| Size: | 30*56mm Rectangular | |
| kind | LIGHT BAR -> LED ARROW DISPLAY | |
LED light bar(Rectangular,30*56mm) Arrow display Features: Display area shape: Rectangular up and down two direction Reflector length: 30.0mm Reflector width: 56.0mm for elevator,lift indicator application Low Current Operation Easily Mounted on PC. Boa
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-AT5Z3056UB | ultra Blue | 470 | 3.8 | 4.5 | 85 | | |
| BL-AT5Z3056B | ultra Blue | 470 | 3.8 | 4.5 | 70 | |
