LED selection Guide
| LED NUMERIC DISPLAY >> DOUBLE DIGITS >> 0.30 inch double numeric LED display
Specification

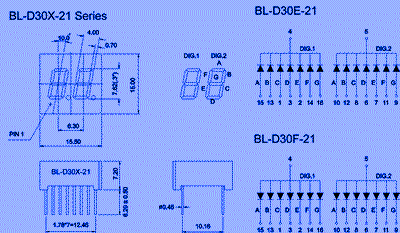

| Title: | 0.30 inch double numeric LED display | |
| P/N: | BL-D30E-21,BL-D30F-21 | |
| Size: | 15.50x15.00mm | |
| kind | LED NUMERIC DISPLAY -> DOUBLE DIGITS | |
0.30 inch double numeric LED display 0.30 inch digit height(7.62mm) width*height: 15.50*15.00mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Catego
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-D30E-21UB | BL-D30F-21UB | ultra Blue | 470 | 3.8 | 4.5 | 70 | |
| BL-D30E-21B | BL-D30F-21B | ultra Blue | 470 | 3.8 | 4.5 | 48 | |
