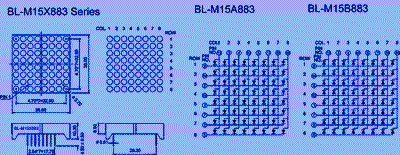

| LED DOT MATRIX >> 8*8 dot matrix >> 1.5 inch height 8x8 LED dot matrix
Specification
| Title: | 1.5 inch height 8x8 LED dot matrix | |
| P/N: | BL-M15A883,BL-M15B883 | |
| Size: | 37.60x37.600mm | |
| kind | LED DOT MATRIX -> 8*8 dot matrix | |
1.5 inch height 8x8 LED dot matrix 1.5 inch Matrix Height(36.60mm) Dot size 3.70mm, circle dot Column: 8 Row: 8 Width*height: 37.60*37.600mm Single color Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC C
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M15A883B | BL-M15B883B | Ultra Blue | 470 | 2.7 | 4.2 | 180 | |
