| LED NUMERIC DISPLAY >> FOUR DIGITS >> 0.50 inch four numeric LED display
Specification

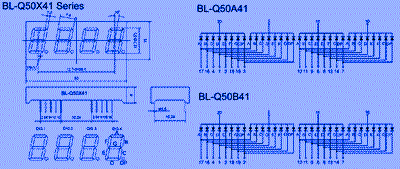

| Title: | 0.50 inch four numeric LED display | |
| P/N: | BL-Q50A-41,BL-Q50B-41 | |
| Size: | 50*19mm | |
| kind | LED NUMERIC DISPLAY -> FOUR DIGITS | |
0.40 inch four numeric LED display 0.40 inch digit height(12.7mm) width*height:50*19mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-Q50A-41UB | BL-Q50B-41UB | ultra Blue | 470 | 3.8 | 4.5 | 125 | |
| BL-Q50A-41B | BL-Q50B-41B | ultra Blue | 470 | 3.8 | 4.5 | 110 | |
