| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 0.30 inch single Numeric LED display
Specification

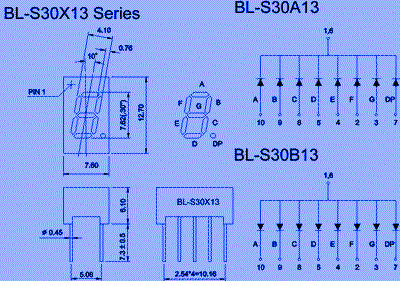

| Title: | 0.30 inch single Numeric LED display | |
| P/N: | BL-S30A-13,BL-S30B-13 | |
| Size: | 7.60x12.70mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
0.30 inch single Numeric LED display 0.30 inch digit height(7.80mm) width*height: 7.60*12.70mm Single decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Character Appearance High Lig
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S30A-13UB | BL-S30B-13UB | ultra Blue | 470 | 3.8 | 4.5 | 31.5 | |
| BL-S30A-13B | BL-S30B-13B | ultra Blue | 470 | 3.8 | 4.5 | 25 | |
