| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 0.80 inch single Numeric LED display
Specification

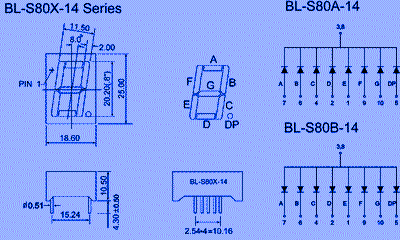

| Title: | 0.80 inch single Numeric LED display | |
| P/N: | BL-S80A-14,BL-S80B-14 | |
| Size: | 18.60x25.00mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
0.80 inch single Numeric LED display 0.80 inch digit height(20.40mm) width*height: 18.60*25.00mm Single decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Character Appearance High L
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S80A-14UB | BL-S80B-14UB | ultra Blue | 470 | 3.8 | 4.5 | 80 | |
| BL-S80A-14B | BL-S80B-14B | ultra Blue | 470 | 3.8 | 4.5 | 65 | |
