| LED NUMERIC DISPLAY >> THREE DIGITS >> 0.31 inch three numeric LED display
Specification
| Title: | 0.31 inch three numeric LED display | |
| P/N: | BL-T31A-31,BL-T31B-31 | |
| Size: | 23.5*11mm | |
| kind | LED NUMERIC DISPLAY -> THREE DIGITS | |
.gif)

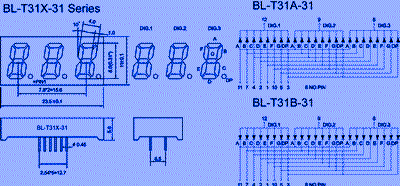

0.31 inch three numeric LED display 0.31 inch digit height(8.00mm) width*height:23.5*11mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-T31A-31UB | BL-T31B-31UB | ultra Blue | 470 | 3.8 | 4.5 | 80 | |
| BL-T31A-31B | BL-T31B-31B | ultra Blue | 470 | 3.8 | 4.5 | 45 | |
