| LED DOT MATRIX >> 5*8 dot matrix >> 4.6 inch height 5x8 LED dot matrix
Specification

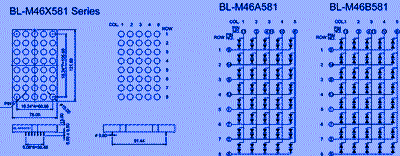

| Title: | 4.6 inch height 5x8 LED dot matrix | |
| P/N: | BL-M46A581,BL-M46B581 | |
| Size: | 76.00x121.50mm | |
| kind | LED DOT MATRIX -> 5*8 dot matrix | |
4.6 inch height 5x8 LED dot matrix 4.6 inch Matrix Height(116.68mm) Dot size 10.00mm, circle dot Column: 5 Row: 8 Width*height: 76.00*121.50mm Bi-color selected Low Current Operation High contrast and Light Output Compatible with ASCII and EBCD
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M46A581W | BL-M46B581W | Ultra White | / | 2.7 | 4.2 | 200 | |
