LED selection Guide
| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 1.00 inch single Numeric LED display
Specification

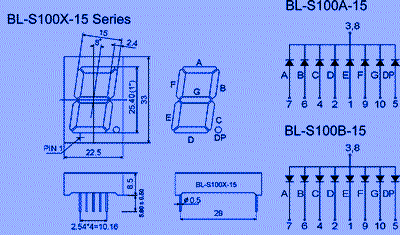

| Title: | 1.00 inch single Numeric LED display | |
| P/N: | BL-S100A-15,BL-S100B-15 | |
| Size: | 22.5*33.0mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
1.00 inch single alpha-Numeric LED display 1.00 inch digit height(25.40mm) width*height: 22.5*33.0mm Common anode or common cathode selected Low Current Operation excellent Character Appearance High Light Output
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S100A-15W | BL-S100B-15W | Ultra White | / | 2.7 | 4.2 | 80 | |
