| LED NUMERIC DISPLAY >> DOUBLE DIGITS >> 0.40 inch double numeric LED display
Specification

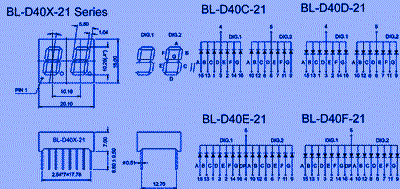

| Title: | 0.40 inch double numeric LED display | |
| P/N: | BL-D40C-21,BL-D40D-21 | |
| Size: | 20.10x16.00mm | |
| kind | LED NUMERIC DISPLAY -> DOUBLE DIGITS | |
0.40 inch double numeric LED display 0.40 inch digit height(10.20mm) width*height:20.10*16.00mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Catego
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-D40C-21W | BL-D40D-21W | Ultra White | / | 2.7 | 4.2 | 70 | |
