| LED DOT MATRIX >> 5*7 dot matrix >> 0.7 inch height 5x7 LED dot matrix
Specification

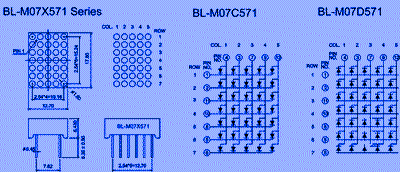

| Title: | 0.7 inch height 5x7 LED dot matrix | |
| P/N: | BL-M07C571,BL-M07D571 | |
| Size: | 12.70x17.80mm | |
| kind | LED DOT MATRIX -> 5*7 dot matrix | |
0.7 inch height 5x7 LED dot matrix 0.7 inch Matrix Height(19.7mm) Dot size 1.90mm, circle dot Column: 5 Row: 7 Width*height: 12.70*17.80mm Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC Codes Stackable Hori
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M07C571W | BL-M07D571W | Ultra White | / | 2.7 | 4.2 | 100 | |
