| LED DOT MATRIX >> 5*7 dot matrix >> 1.2 inch height 5x7 LED dot matrix
Specification

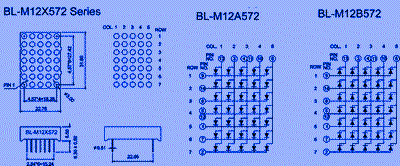

| Title: | 1.2 inch height 5x7 LED dot matrix | |
| P/N: | BL-M12A572,BL-M12B572 | |
| Size: | 22.75x31.80mm | |
| kind | LED DOT MATRIX -> 5*7 dot matrix | |
1.2 inch height 5x7 LED dot matrix 1.2 inch Matrix Height(30.42mm) Dot size 3.00mm, circle dot Column: 5 Row: 7 Width*height: 22.75*31.80mm Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC Codes Stackable Hor
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M12A572W | BL-M12B572W | Ultra White | / | 2.7 | 4.2 | 100 | |
