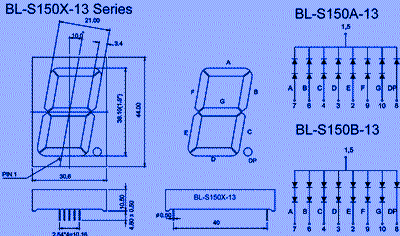

| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 1.50 inch single alpha-Numeric LED display
Specification
| Title: | 1.50 inch single alpha-Numeric LED display | |
| P/N: | BL-S150A-13,BL-S150B-13 | |
| Size: | 30.6*44.0mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
1.50 inch single Numeric LED display 1.50 inch digit height(38.10mm) width*height: 30.6*44.0mm Bi-color selected; Single decimal point Common anode or common cathode selected Low Current Operation excellent Character Appearance High Light Outpu
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S150A-13W | BL-S150B-13W | Ultra White | / | 2.7 | 4.2 | 120 | |
