| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 2.30 inch single alpha-Numeric LED display
Specification

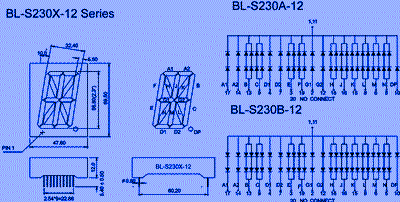

| Title: | 2.30 inch single alpha-Numeric LED display | |
| P/N: | BL-S230A-12,BL-S230B-12 | |
| Size: | 47.60x69.50mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
2.30 inch single alpha-Numeric LED display 2.30 inch digit height(56.80mm) width*height:47.60*69.50mm Single decimal point Common anode or common cathode selected Low Current Operation excellent Character Appearance High Light Output Easy Mountin
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S230A-12W | BL-S230B-12W | Ultra White | / | 2.7 | 4.2 | 95 | |
