| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 0.30 inch single Numeric LED display
Specification

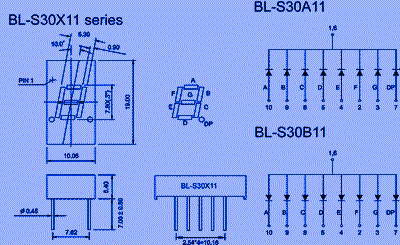

| Title: | 0.30 inch single Numeric LED display | |
| P/N: | BL-S30A-11,BL-S30B-11 | |
| Size: | 10.06x19.00mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
0.30 inch single Numeric LED display 0.30 inch digit height(7.80mm) width*height: 10.06*19.00mm Single decimal point or double decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Charac
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S30A-11W | BL-S30B-11W | Ultra White | / | 2.7 | 4.2 | 30 | |
