| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 0.43 inch single Numeric LED display
Specification

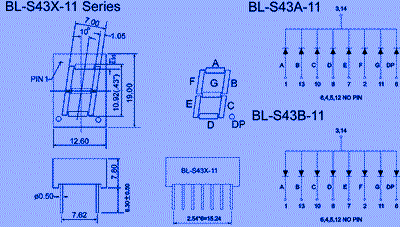

| Title: | 0.43 inch single Numeric LED display | |
| P/N: | BL-S43A-11,BL-S43B-11 | |
| Size: | 12.60x19.00mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
0.43 inch single Numeric LED display 0.43 inch digit height(10.92mm) width*height: 12.60*19.00mm Double decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Character Appearance High L
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S43A-11W | BL-S43B-11W | Ultra White | / | 2.7 | 4.2 | 40 | |
