| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 0.80 inch single Numeric LED display
Specification

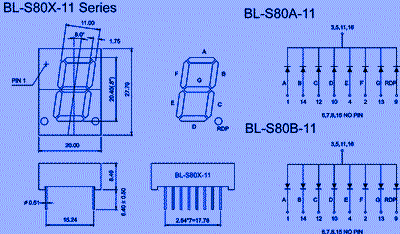

| Title: | 0.80 inch single Numeric LED display | |
| P/N: | BL-S80A-11,BL-S80B-11 | |
| Size: | 20.00x27.70mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
0.60 inch single Numeric LED display 0.60 inch digit height(15.00mm) width*height: 18.00*25.00mm Double decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Character Appearance High L
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S80A-11W | BL-S80B-11W | Ultra White | / | 2.7 | 4.2 | 80 | |
