| LIGHT BAR >> LIGHT BAR >> LED light bar(rectangular ,1 bar,12.00*6.00mm)
Specification

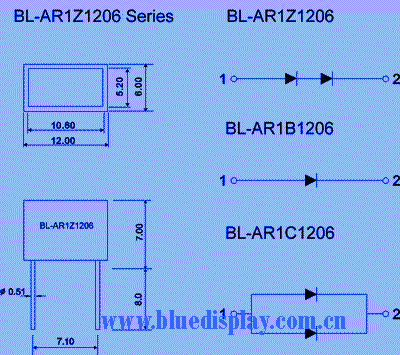

| Title: | LED light bar(rectangular ,1 bar,12.00*6.00mm) | |
| P/N: | BL-AR1Z1206 | |
| Size: | Reflector length: 12 Reflector width: 6 | |
| kind | LIGHT BAR -> LIGHT BAR | |
LED light bar(rectangular ,12.00*6.00mm) Lightbar LED Features: Display area shape: rectangular Display area number: 1 Reflector length: 12.00mm Reflector width: 6.0mm Uniform Light Emitting Area Low Current Operation Easily Mounted on PC. Boar
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-AR1Z1206UB | ultra Blue | 470 | 3.8 | 4.5 | 20 | | |
| BL-AR1Z1206B | ultra Blue | 470 | 3.8 | 4.5 | 10 | |
