| LIGHT BAR >> LIGHT BAR >> LED light bar(rectangular ,1 bar,32.00*22.00mm)
Specification

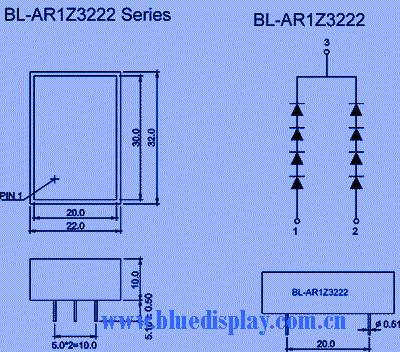

| Title: | LED light bar(rectangular ,1 bar,32.00*22.00mm) | |
| P/N: | BL-AR1Z3222 | |
| Size: | Reflector length: 32 Reflector width: 22 | |
| kind | LIGHT BAR -> LIGHT BAR | |
LED light bar(rectangular ,32.00*22.00mm) Lightbar LED Features: Display area shape: rectangular Display area number: 1 Reflector length: 32.00mm Reflector width: 22.00mm Uniform Light Emitting Area Low Current Operation Easily Mounted on PC. B
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-AR1Z3222UB | ultra Blue | 470 | 3.8 | 4.5 | 22.5 | | |
| BL-AR1Z3222B | ultra Blue | 470 | 3.8 | 4.5 | 12.5 | |
