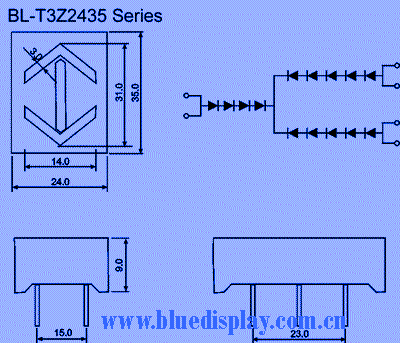

| LIGHT BAR >> LED ARROW DISPLAY >> Arrow display 24*35mm
Specification
| Title: | Arrow display 24*35mm | |
| P/N: | BL-AT3Z2435 | |
| Size: | 24*35mm Rectangular | |
| kind | LIGHT BAR -> LED ARROW DISPLAY | |
LED light bar(Rectangular,24*35mm) Arrow display Features: Display area shape: Rectangular up and down two direction Reflector length: 24.0mm Reflector width: 35.0mm for elevator,lift indicator application Low Current Operation Easily Mounted on PC. Boa
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-AT3Z2435UB | ultra Blue | 470 | 3.8 | 4.5 | 85 | | |
| BL-AT3Z2435B | ultra Blue | 470 | 3.8 | 4.5 | 70 | |
