| LED NUMERIC DISPLAY >> DOUBLE DIGITS >> 1.50 inch double numeric LED display
Specification

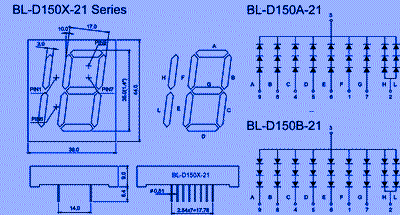

| Title: | 1.50 inch double numeric LED display | |
| P/N: | BL-D150A-21,BL-D150B-21 | |
| Size: | 38.0*44.0mm | |
| kind | LED NUMERIC DISPLAY -> DOUBLE DIGITS | |
1.50 inch double numeric LED display 1.50 inch digit height(35.0mm) width*height: 38.0*44.0mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-D150A-21UB | BL-D150B-21UB | ultra Blue | 470 | 3.8 | 4.5 | 88 | |
| BL-D150A-21B | BL-D150B-21B | ultra Blue | 470 | 3.8 | 4.5 | 50 | |
