Product
LED selection Guide

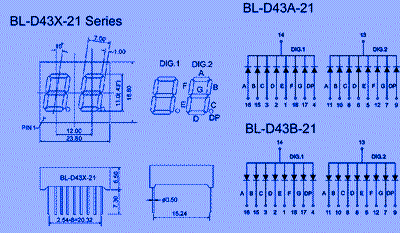

| LED NUMERIC DISPLAY >> DOUBLE DIGITS >> 0.43 inch double numeric LED display
Specification
| Title: | 0.43 inch double numeric LED display | |
| P/N: | BL-D43A-21,BL-D43B-21 | |
| Size: | 23.80x18.80mm | |
| kind | LED NUMERIC DISPLAY -> DOUBLE DIGITS | |
0.43 inch double numeric LED display 0.43 inch digit height(11.00mm) width*height:23.80*18.80mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Catego
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-D43A-21UB | BL-D43B-21UB | ultra Blue | 470 | 3.8 | 4.5 | 75 | |
| BL-D43A-21B | BL-D43B-21B | ultra Blue | 470 | 3.8 | 4.5 | 45 | |
