| LED NUMERIC DISPLAY >> DOUBLE DIGITS >> 0.50 inch double numeric LED display
Specification

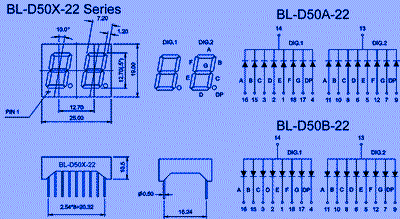

| Title: | 0.50 inch double numeric LED display | |
| P/N: | BL-D50A-22,BL-D50B-22 | |
| Size: | 25.00x19.00mm | |
| kind | LED NUMERIC DISPLAY -> DOUBLE DIGITS | |
0.50 inch double numeric LED display 0.50 inch digit height(12.70mm) width*height:25.00*19.00mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Catego
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-D50A-22UB | BL-D50B-22UB | ultra Blue | 470 | 3.8 | 4.5 | 75 | |
| BL-D50A-22B | BL-D50B-22B | ultra Blue | 470 | 3.8 | 4.5 | 45 | |
