| LED NUMERIC DISPLAY >> DOUBLE DIGITS >> 0.52 inch double numeric LED display
Specification

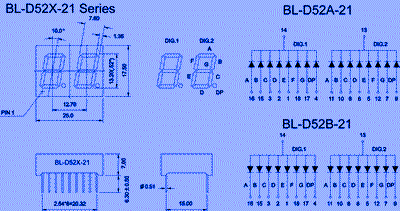

| Title: | 0.52 inch double numeric LED display | |
| P/N: | BL-D52A-21,BL-D52B-21 | |
| Size: | 24.80x17.50mm | |
| kind | LED NUMERIC DISPLAY -> DOUBLE DIGITS | |
0.52 inch double numeric LED display 0.52 inch digit height(13.20mm) width*height:24.80*17.50mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Catego
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-D52A-21UB | BL-D52B-21UB | ultra Blue | 470 | 3.8 | 4.5 | 80 | |
| BL-D52A-21B | BL-D52B-21B | ultra Blue | 470 | 3.8 | 4.5 | 45 | |
