| LED NUMERIC DISPLAY >> DOUBLE DIGITS >> 0.54 inch double alpha-Numeric LED display
Specification

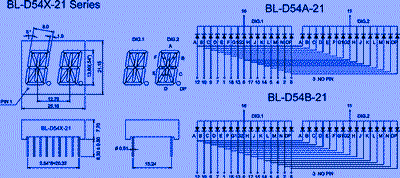

| Title: | 0.54 inch double alpha-Numeric LED display | |
| P/N: | BL-D54A-21,BL-D54B-21 | |
| Size: | 25.10x21.15mm | |
| kind | LED NUMERIC DISPLAY -> DOUBLE DIGITS | |
0.54 inch double alpha-Numeric LED display 0.54 inch digit height(13.60mm) width*height:25.10*21.15mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-D54A-21UB | BL-D54B-21UB | ultra Blue | 470 | 3.8 | 4.5 | 80 | |
| BL-D54A-21B | BL-D54B-21B | ultra Blue | 470 | 3.8 | 4.5 | 45 | |
