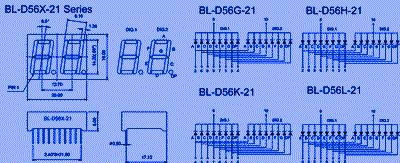

| LED NUMERIC DISPLAY >> DOUBLE DIGITS >> 0.56 inch double numeric LED display
Specification
| Title: | 0.56 inch double numeric LED display | |
| P/N: | BL-D56G-21,BL-D56H-21 | |
| Size: | 25.00x19.00mm | |
| kind | LED NUMERIC DISPLAY -> DOUBLE DIGITS | |
0.56 inch double numeric LED display 0.56 inch digit height(14.20mm) width*height:25.00*19.00mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Catego
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-D56G-21UB | BL-D56H-21UB | ultra Blue | 470 | 3.8 | 4.5 | 88 | |
| BL-D56G-21B | BL-D56H-21B | ultra Blue | 470 | 3.8 | 4.5 | 50 | |
