| LED DOT MATRIX >> 8*8 dot matrix >> 0.7 inch height 8x8 LED dot matrix
Specification

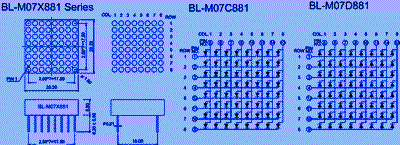

| Title: | 0.7 inch height 8x8 LED dot matrix | |
| P/N: | BL-M07C881,BL-M07D881 | |
| Size: | 20.20x20.20mm | |
| kind | LED DOT MATRIX -> 8*8 dot matrix | |
0.7 inch height 8x8 LED dot matrix 0.7 inch Matrix Height(19.4mm) Dot size 1.90mm, circle dot Column: 8 Row: 8 Width*height: 20.20*20.20mm Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC Codes Stackable Hori
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M07C881B | BL-M07D881B | Ultra Blue | 470 | 2.7 | 4.2 | 180 | |
