| LED DOT MATRIX >> 8*8 dot matrix >> 1.2 inch height 8x8 LED dot matrix
Specification

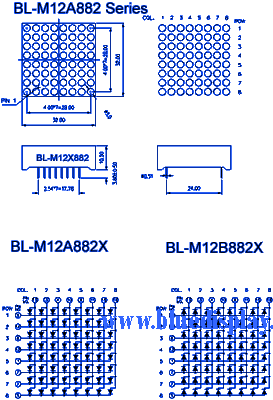

| Title: | 1.2 inch height 8x8 LED dot matrix | |
| P/N: | BL-M12A882,BL-M12B882 | |
| Size: | 32.00x32.00mm | |
| kind | LED DOT MATRIX -> 8*8 dot matrix | |
1.2 inch height 8x8 LED dot matrix 1.2 inch Matrix Height(31.00mm) Dot size 3.00mm, circle dot Column: 8 Row: 8 Width*height: 32.00*32.00mm Bi-color selected Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC C
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M12A882UB | BL-M12B882UB | ultra Blue | 470 | 3.8 | 4.5 | 180 | |
| BL-M12A882B | BL-M12B882B | ultra Blue | 470 | 3.8 | 4.5 | 120 | |
