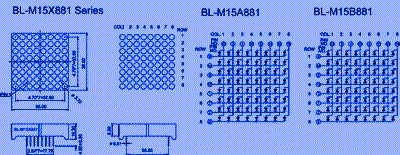

| LED DOT MATRIX >> 8*8 dot matrix >> 1.5 inch height 8x8 LED dot matrix
Specification
| Title: | 1.5 inch height 8x8 LED dot matrix | |
| P/N: | BL-M15A881,BL-M15B881 | |
| Size: | 38.00x38.00mm | |
| kind | LED DOT MATRIX -> 8*8 dot matrix | |
1.5 inch height 8x8 LED dot matrix 1.5 inch Matrix Height(36.60mm) Dot size 3.70mm, circle dot Column: 8 Row: 8 Width*height: 38.00*38.00mm Bi-color selected Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC C
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M15A881UB | BL-M15B881UB | ultra Blue | 470 | 3.8 | 4.5 | 180 | |
| BL-M15A881B | BL-M15B881B | ultra Blue | 470 | 3.8 | 4.5 | 120 | |
