| LED DOT MATRIX >> 8*8 dot matrix >> 1.9 inch height 8x8 LED dot matrix
Specification

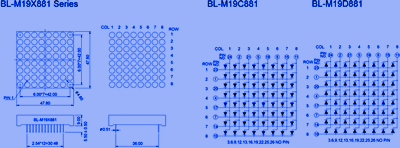

| Title: | 1.9 inch height 8x8 LED dot matrix | |
| P/N: | BL-M19C881,BL-M19D881 | |
| Size: | 47.80x47.80mm | |
| kind | LED DOT MATRIX -> 8*8 dot matrix | |
1.9 inch Matrix Height(46.80mm) Dot size 4.80mm, circle dot Column: 8 Row: 8 Width*height: 47.80*47.80mm Bi-color selected and RGB color selected Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC Codes Stackab
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M19C881UB | BL-M19D881UB | ultra Blue | 470 | 3.8 | 4.5 | 270 | |
| BL-M19C881B | BL-M19D881B | ultra Blue | 470 | 3.8 | 4.5 | 150 | |
