| LED DOT MATRIX >> 5*7 dot matrix >> 2.0 inch height 5x7 LED dot matrix
Specification

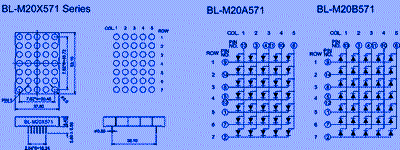

| Title: | 2.0 inch height 5x7 LED dot matrix | |
| P/N: | BL-M20A571,BL-M20B571 | |
| Size: | 37.80x53.10mm | |
| kind | LED DOT MATRIX -> 5*7 dot matrix | |
2.0 inch height 5x7 LED dot matrix 2.0 inch Matrix Height(50.72mm) Dot size 5.00mm, circle dot Column: 5 Row: 7 Width*height: 37.80*53.10mm Bi-color selected and RGB color selected Low Current Operation High contrast and Light Output Compatible w
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M20A571UB | BL-M20B571UB | ultra Blue | 470 | 3.8 | 4.5 | 90 | |
| BL-M20A571B | BL-M20B571B | ultra Blue | 470 | 3.8 | 4.5 | 65 | |
