LED DOT MATRIX >> 8*8 dot matrix >> 2.0 inch height 8x8 LED dot matrix

Specification

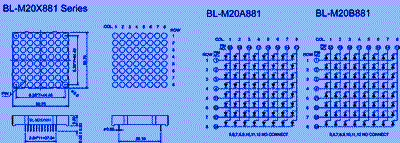

Title:2.0 inch height 8x8 LED dot matrix
P/N:BL-M20A881,BL-M19B881
Size: 50.70x50.70mm
kindLED DOT MATRIX -> 8*8 dot matrix



2.0 inch height 8x8 LED dot matrix 2.0 inch Matrix Height(49.45mm) Dot size 5.00mm, circle dot Column: 8 Row: 8 Width*height: 50.70*50.70mm Bi-color selected Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC C

Sepecification

Part No CC. Part No CA. Color Wave length (V) typ (V) Max (mcd) Pic
BL-M20A881B BL-M20B881B Ultra Blue 470 2.7 4.2 270
BL-M20A881UB BL-M20B881UB ultra Blue 470 3.8 4.5 270
BL-M20A881B BL-M20B881B ultra Blue 470 3.8 4.5 150

Hits:90  UpdateTimes:2005-4-25 [Print] [Return]
