| LED DOT MATRIX >> 5*8 dot matrix >> 2.3 inch height 5x8 LED dot matrix
Specification

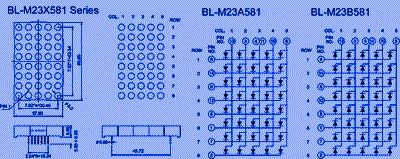

| Title: | 2.3 inch height 5x8 LED dot matrix | |
| P/N: | BL-M23A581,BL-M23B581 | |
| Size: | 37.80x60.60mm | |
| kind | LED DOT MATRIX -> 5*8 dot matrix | |
2.3 inch height 5x8 LED dot matrix 2.3 inch Matrix Height(58.34mm) Dot size 5.00mm, circle dot Column: 5 Row: 8 Width*height: 37.80*60.60mm Bi-color selected Low Current Operation High contrast and Light Output Compatible with ASCII and EBCDIC C
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M23A581UB | BL-M23B581UB | ultra Blue | 470 | 3.8 | 4.5 | 250 | |
| BL-M23A581B | BL-M23B581B | ultra Blue | 470 | 3.8 | 4.5 | 160 | |
