| LED DOT MATRIX >> 8*8 dot matrix >> 2.3 inch height 8x8 LED dot matrix
Specification
| Title: | 2.3 inch height 8x8 LED dot matrix | |
| P/N: | BL-M23E881,BL-M23F881 | |
| Size: | 60.20x60.20mm | |
| kind | LED DOT MATRIX -> 8*8 dot matrix | |

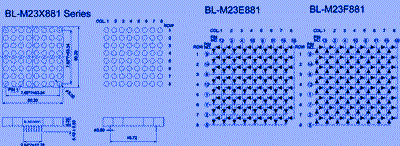

2.3 inch height 8x8 LED dot matrix 2.3 inch Matrix Height(58.34mm) Dot size 5.00mm, circle dot Column: 8 Row: 8 Width*height: 60.20*60.20mm Bi-color selected and RGB color selected Low Current Operation High contrast and Light Output Compatible
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M23E881B | BL-M23F881B | Ultra Blue | 470 | 2.7 | 4.2 | 270 | |
