| LED DOT MATRIX >> 5*7 dot matrix >> 4.0 inch height 5x7 LED dot matrix
Specification

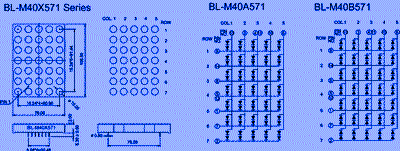

| Title: | 4.0 inch height 5x7 LED dot matrix | |
| P/N: | BL-M40A571,BL-M40B571 | |
| Size: | 76.00x106.50mm | |
| kind | LED DOT MATRIX -> 5*7 dot matrix | |
4.0 inch height 5x7 LED dot matrix 4.0 inch Matrix Height(101.44mm) Dot size 10.00mm, circle dot Column: 5 Row: 7 Width*height: 76.00*106.50mm Bi-color selected Low Current Operation High contrast and Light Output Compatible with ASCII and EBCD
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-M40A571UB | BL-M40B571UB | ultra Blue | 470 | 7.6 | 9 | 120 | |
| BL-M40A571B | BL-M40B571B | ultra Blue | 470 | 7.6 | 9 | 100 | |
