Product
LED selection Guide
| LED NUMERIC DISPLAY >> FOUR DIGITS >> 0.30 inch four numeric LED display
Specification

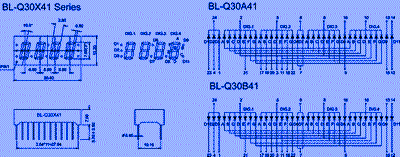

| Title: | 0.30 inch four numeric LED display | |
| P/N: | BL-Q30A-41,BL-Q30B-41 | |
| Size: | 30.40x13.20mm | |
| kind | LED NUMERIC DISPLAY -> FOUR DIGITS | |
0.30 inch four numeric LED display 0.30 inch digit height(7.60mm) width*height:30.40*13.20mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Categoriz
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-Q30A-41UB | BL-Q30B-41UB | ultra Blue | 470 | 3.8 | 4.5 | 120 | |
| BL-Q30A-41B | BL-Q30B-41B | ultra Blue | 470 | 3.8 | 4.5 | 90 | |
