| LED NUMERIC DISPLAY >> FOUR DIGITS >> 0.33 inch four numeric LED display
Specification

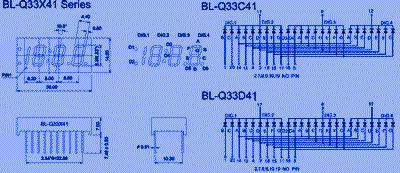

| Title: | 0.33 inch four numeric LED display | |
| P/N: | BL-Q33C-41,BL-Q33D-41 | |
| Size: | 30.20x14.10mm | |
| kind | LED NUMERIC DISPLAY -> FOUR DIGITS | |
0.33 inch four numeric LED display 0.33 inch digit height(8.38mm) width*height:30.20*14.10mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Categoriz
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-Q33C-41UB | BL-Q33D-41UB | ultra Blue | 470 | 3.8 | 4.5 | 120 | |
| BL-Q33C-41B | BL-Q33D-41B | ultra Blue | 470 | 3.8 | 4.5 | 90 | |
