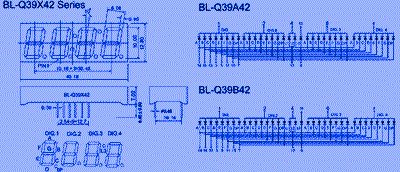

| LED NUMERIC DISPLAY >> FOUR DIGITS >> 0.39 inch four numeric LED display
Specification
| Title: | 0.39 inch four numeric LED display | |
| P/N: | BL-Q39A-42,BL-Q39B-42 | |
| Size: | 40.18x12.80mm | |
| kind | LED NUMERIC DISPLAY -> FOUR DIGITS | |
0.39 inch four numeric LED display 0.39 inch digit height(10.0mm) width*height:40.18*12.80mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Categoriz
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-Q39A-42UB | BL-Q39B-42UB | ultra Blue | 470 | 3.8 | 4.5 | 125 | |
| BL-Q39A-42B | BL-Q39B-42B | ultra Blue | 470 | 3.8 | 4.5 | 100 | |
