| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 1.50 inch single Numeric LED display
Specification

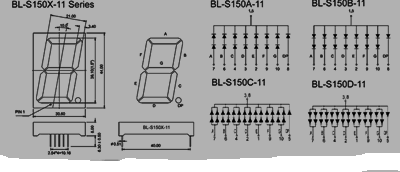

| Title: | 1.50 inch single Numeric LED display | |
| P/N: | BL-S150A-11,BL-S150B-11 | |
| Size: | 30.60x44.00mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
1.50 inch single Numeric LED display 1.50 inch digit height(38.00mm) width*height: 30.60*44.00mm Bi-color selected; Single decimal point Common anode or common cathode selected Low Current Operation excellent Character Appearance High Light Outpu
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S150A-11UB | BL-S150B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 100 | |
| BL-S150A-11B | BL-S150B-11B | ultra Blue | 470 | 3.8 | 4.5 | 85 | |
