| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 1.80 inch single Numeric LED display
Specification

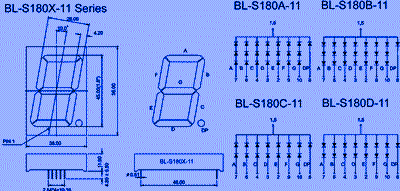

| Title: | 1.80 inch single Numeric LED display | |
| P/N: | BL-S180A-11,BL-S180B-11 | |
| Size: | 38.00x56.00mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
1.80 inch single Numeric LED display 1.80 inch digit height(45.00mm) width*height: 38.00*56.00mm Bi-color selected; Single decimal point Double or three LED chips per segment(single color) Four or Six LED chips per segment(bi-color) Common anode o
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S180A-11UB | BL-S180B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 120 | |
| BL-S180A-11B | BL-S180B-11B | ultra Blue | 470 | 3.8 | 4.5 | 97 | |
