| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 5.00 inch single Numeric LED display
Specification

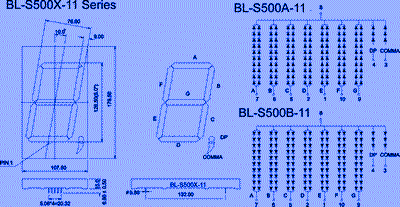

| Title: | 5.00 inch single Numeric LED display | |
| P/N: | BL-S500A-11,BL-S500B-11 | |
| Size: | 108.00x180.00mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
5.00 inch single Numeric LED display 5.00 inch digit height(126.60mm) width*height: 108.00*180.00mm Single decimal point and a comma 20 LED chips per segment (single color) Common anode or common cathode selected Low Current Operation excellent Ch
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S500A-11UB | BL-S500B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 170 | |
| BL-S500A-11B | BL-S500B-11B | ultra Blue | 470 | 3.8 | 4.5 | 155 | |
