| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 0.52 inch single Numeric LED display
Specification

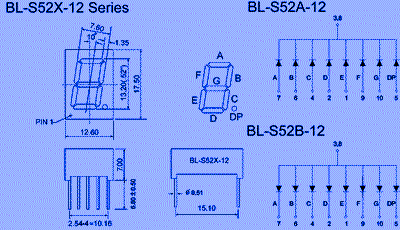

| Title: | 0.52 inch single Numeric LED display | |
| P/N: | BL-S52A-12,BL-S52B-12 | |
| Size: | 12.60x17.50mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
0.52 inch single Numeric LED display 0.52 inch digit height(13.20mm) width*height: 12.60*17.50mm Single decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Character Appearance High L
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S52A-12UB | BL-S52B-12UB | ultra Blue | 470 | 3.8 | 4.5 | 70 | |
| BL-S52A-12B | BL-S52B-12B | ultra Blue | 470 | 3.8 | 4.5 | 50 | |
