| LED NUMERIC DISPLAY >> SINGLE DIGIT >> 7 inch single Numeric LED display

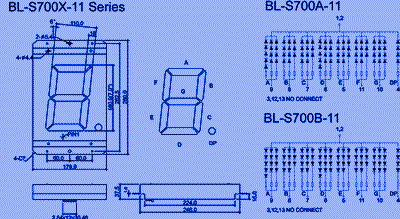

Specification
| Title: | 7 inch single Numeric LED display | |
| P/N: | BL-S700A-11,BL-S700B-11 | |
| Size: | 179.00x280.00mm | |
| kind | LED NUMERIC DISPLAY -> SINGLE DIGIT | |
7.00 inch single Numeric LED display 7.00 inch digit height(180.0mm) width*height: 179.00*280.00mm Single decimal point and a comma 20 LED chips per segment (single color) Common anode or common cathode selected Low Current Operation excellent Cha
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-S700A-11UB | BL-S700B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 200 | |
| BL-S700A-11B | BL-S700B-11B | ultra Blue | 470 | 3.8 | 4.5 | 170 | |
