| LED NUMERIC DISPLAY >> DIGIT SEGMENT >> 5 inch single big digit segment display
Specification

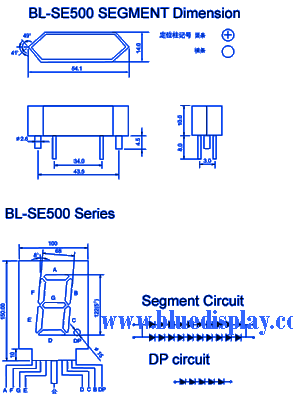

| Title: | 5 inch single big digit segment display | |
| P/N: | BL-SE500A | |
| Size: | 100*150mm | |
| kind | LED NUMERIC DISPLAY -> DIGIT SEGMENT | |
5.00 inch single Numeric LED display big segment display 5.00 inch digit height(122mm) width*height: 100*150mm Single decimal point and a comma Common anode or common cathode selected Low Current Operation excellent Character Appearance High Light Output
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-SE500A-11UB | BL-SE500B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 200 | |
| BL-SE500A-11B | BL-SE500B-11B | ultra Blue | 470 | 3.8 | 4.5 | 185 | |
