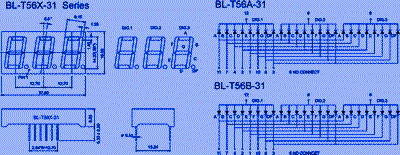

| LED NUMERIC DISPLAY >> THREE DIGITS >> 0.56 inch three numeric LED display
Specification
| Title: | 0.56 inch three numeric LED display | |
| P/N: | BL-T56A-31,BL-T56B-31 | |
| Size: | 37.80x19.00mm | |
| kind | LED NUMERIC DISPLAY -> THREE DIGITS | |
.gif)
0.56 inch three numeric LED display 0.56 inch digit height(14.20mm) width*height:37.80*19.00mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Categor
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-T56A-31UB | BL-T56B-31UB | ultra Blue | 470 | 3.8 | 4.5 | 100 | |
| BL-T56A-31B | BL-T56B-31B | ultra Blue | 470 | 3.8 | 4.5 | 50 | |
